PRODUCT

12mm F2.0 NCS CS

제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지

Capture more delicate and wider world with the portable 12mm extra-wide-angle lens

It is an extra-wide-angle manual focus lens designed for APS-C crop sensor mirrorless cameras. With low distortion and wide angle, photographers who want wide-angle photos such as landscape and architectural images can create satisfactory images. F2.0 is very bright so it captures clear and vivid images even in relatively dark environment.

For the first time in Samyang Optics history, the independent NCS(Nano Coating System) technology was used. It creates even lower reflection rate than the original UMC (Ultra Multi Coating) and higher contrast. Also, the light penetration rate is very high to minimize flare and ghost. Optical construction of Samyang 12mm F2.0 NCS CS features 12 elements in 10 groups – among lenses, there are 1 aspherical lens(AS), 1 hybrid aspherical lens (H-ASP) and 3 extra-low dispersion lenses(ED) to provide high image quality. H-ASP minimizes color aberration to realize exceptional image quality and high contrast for center and corner of the image even when its aperture is fully opened. ED lowers unnecessary light dispersion to drop color aberration effectively. With such optical construction, it has 0.2m of minimum focal length.

There are 6 aperture blades designed to be almost as a full circle when aperture is closed which expresses starlike ray clearly and beautifully in deep depth of field images. The frame of Samyang 12mm F2.0 NCS CS is compact and solid since it is made of high-strength aluminum alloy. Trustworthy images can be captured even under inferior environment. Also, petal-shaped lens hood to shelter lens from unnecessary light is provided.

Available for 5 camera mounts: Canon M, Sony E, MFT, Samsung NX, Fujifilm X
※ Size and design may vary depending on the mount of a lens


  • Bright F2.0 Aperture

    Guarantees faster shutter speed in low light conditions and adds depth to your pictures by blurring the background.


  • Aspherical Lens

    With minimal spherical aberration and distortion, you can take pictures with incredible precision.



  • Nano Coating System

    The nano-coating system minimizes flare and ghosting effect resulting in crystal clear image quality.


  • Beautiful Bokeh with 6 Aperture Blades

    Featuring 6 rounded blades, it adds an artistic touch to your pictures and creates a sense of soft dimension with incredible bokeh, perfect for out-of-focus portraits and night city landscapes.



  • Compact & Lightweight

    The compact, lightweight build makes it the perfect choice when traveling.


  • Smooth Focus Ring

    Smooth focusing ensures precise control and produces images with incredible sharpness, making it the ideal choice for indoor and night shooting.

Technical Information
  • Specifications
    Model Name 12mm F2.0 NCS CS
    Aperture Range F2.0 ~ 22
    Optical Construction 12 ELEMENTS IN 10 GROUPS (2ASPHERICAL LENS)
    Minimum Focusing Distance 0.2 m
    Filter Size 67.0mm
    Maximum Diameter 72.5mm
    Mount Canon M Fujifilm X Samsung NX Sony E MFT
    Angle Of View APS-C 95.7˚ 98.9˚ 98.9˚ 98.9˚ -
    FOUR-THIRDS - - - - 83.0˚
    Length 59mm 59.4mm 51.6mm 59.1mm 57.9mm
    Weight 245g 260g 235g 245g 255g

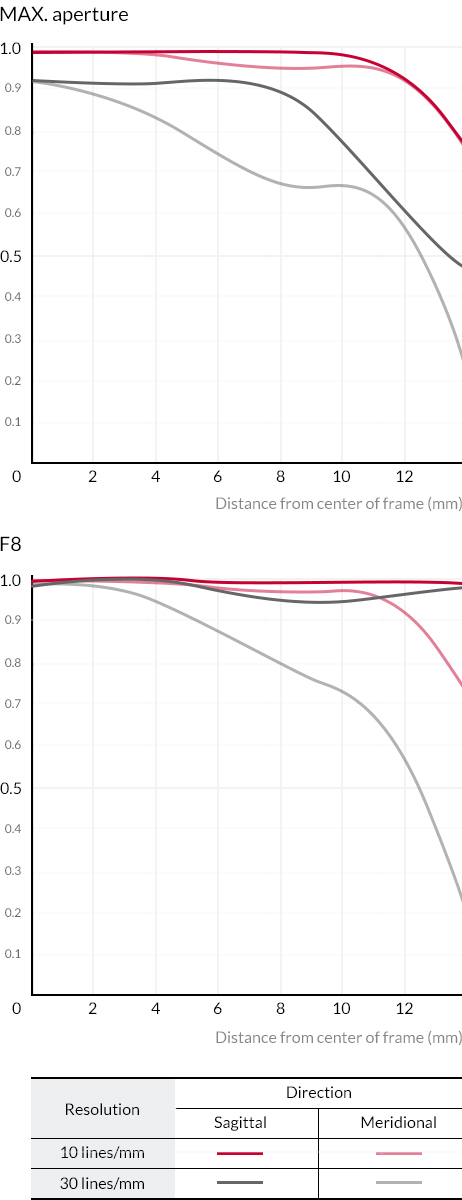

  • MTF CHART

  • Optical Construction

We noticed that you are accessing from United-States of America.

If you're looking for another location, please select your location.

Country/ Region
Online shop
GO
Newsletter Feedback Shop
Now

Samyang’s Guide to Achieving the Optimal Angle of View

The perfect spacing and distance are always necessary when shooting all kinds of subjects, including people, to give them a proper relationship with the beautiful space around them. So, what’s the exact distance that helps you best appreciate a work of art, or a photo?

The correct answer is the diagonal length of the full frame of a subject.

표준화각 자료 이미지
표준화각 자료 이미지

The best standpoint from which to appreciate the full view of a subject is the distance of the diagonal length of the subject frame. This wider angle is superior to standing closer at a 50 degree angle to get a more detailed view. This notion of an ideal distance or view point is also applicable in the world of photography.

For still images, keeping a distance equal to the diagonal length of the full image surface is recommended. The full frame sensor of a digital camera is 36 x 24mm and the diagonal length is 43.26mm so any distance close to this number is nearer to the ideal than the currently accepted industry standard of 50mm.

Back when film cameras were common, 45mm was the industry standard and this continued as reflex cameras needed extra space to fit a mirror. However, as mirrorless cameras become more popular again, there has been a need to return to this industry standard…which is the impetus for the Samyang AF 45mm F1.8 FE. With less distortion than a 35mm lens and wider angles than a 55mm lens, the Samyang AF 45mm F1.8 FE is a perfect lens for portraits, landscapes, architecture photography, and pictures of pets.

What is Preset Aperture Control Function?

On the Preset Aperture Control function, the aperture blade operates smoothly like a "De-clicked lens", which is advantageous for video recording.
Fujifilm cameras are engineered to control the aperture according to the minimum exposure value(F-stop), so when the camera controls the aperture, it blinks momentarily to set the proper exposure.

AF 75mm F1.8 X intentionally disconnects the communication with the camera body and the lens itself on the Preset Aperture Control function, so it is possible to smoothly adjust the exposure without flickering. ISO and shutter speed are adjusted according to the changed exposure by controlling the aperture, so the exposure value can be changed even with the 1/2 F-stop.

What is Preset Aperture Control Function?

On the Preset Aperture Control function, the aperture blade operates smoothly like a "De-clicked lens", which is advantageous for video recording.
Fujifilm cameras are engineered to control the aperture according to the minimum exposure value(F-stop), so when the camera controls the aperture, it blinks momentarily to set the proper exposure.

AF 75mm F1.8 X intentionally disconnects the communication with the camera body and the lens itself on the Preset Aperture Control function, so it is possible to smoothly adjust the exposure without flickering. ISO and shutter speed are adjusted according to the changed exposure by controlling the aperture, so the exposure value can be changed even with the 1/2 F-stop.

What is Recommended Settings for Preset Aperture Control Function?

The Preset Aperture Control function operates only when shooting video(Movie mode) and the focusing mode of the camera is set to AF mode. Please set the aperture at f/1.8 before switching the "Custom Switch" to "Mode 2. It is recommended to set the "Exposure mode" as A mode (Aperture Priority AE) or M mode (Manual Exposure).

* How to use the “Preset Aperture Control” function?

1) Camera Body Setting
      AF Mode → Video Mode ('A' or 'M' mode) → Set the Aperture @F1.8
(2) Lens Setting
      Switch your "Custom Switch” to “Mode 2(M2)"
(3) Now, you're ready to use the Preset Aperture Control function with your focus ring

What is Recommended Settings for Preset Aperture Control Function?

The Preset Aperture Control function operates only when shooting video(Movie mode) and the focusing mode of the camera is set to AF mode. Please set the aperture at f/1.8 before switching the "Custom Switch" to "Mode 2. It is recommended to set the "Exposure mode" as A mode (Aperture Priority AE) or M mode (Manual Exposure).

* How to use the “Preset Aperture Control” function?

1) Camera Body Setting
      AF Mode → Video Mode ('A' or 'M' mode) → Set the Aperture @F1.8
(2) Lens Setting
      Switch your "Custom Switch” to “Mode 2(M2)"
(3) Now, you're ready to use the Preset Aperture Control function with your focus ring

[What is Dolly Shot? How to Shoot Easily]

[What is Dolly shot?]

A dolly shot, also referred to as a tracking shot or trucking shot, is a camera movement technique used by cinematographers to track and follow a subject in motion. To achieve this, the camera is mounted on a device called a "dolly," which facilitates smooth tracking movement. The dolly can move in front of, behind, or alongside the subject, which can be a person, a location, a product, or any other object of focus in the frame. Through this, you can control the emotional distance between the subject and the viewer by highlighting the audiovisual and dramatic effects.

[How to take a Dolly Shot simply by handheld]

Tip. If the moving distance is long, the camera may shake, so please shoot at a focal length between 35 and 100mm.
1. Stand at a distance of about 1.5 to 2 meters away from the subject.
2. Set the custom switch to MF and Mode 3 and adjust the focal length to about 100mm.
3. After focusing on the subject, set the aperture to F8~16.
4. Slowly turn the zoom ring to the left (towards the wide-angle end) while using your upper body and arms to move the camera toward your subject.
5. Dolly Shot complete!
※ When shooting from a farther distance from the subject, use a cart or gimbal for more stable shooting.
