XP 14mm F2.4

XP is a lens that has outstanding expression capabilities, which enables the use of a shallow depth of field with a bright aperture. The lens encompasses the essence of optics as it captures the photographer’s objectives through realistic description, artistic expression, and a combination of the extremes.

작성자 Product Planner / Jeongmin Shin
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지


Excellence in Performance in wide angle

Designed for DSLRs with more than 50MP and 8K video shooters, the Samyang XP 14mm F2.4 lens features unmatched resolving power for ultra-high quality images. Its rich pixel information is reflected in the pictures and allows plenty of room for creativity in post-processing. With impressive bokeh and starburst effects, you can capture vibrant images beyond what your eyes can see.

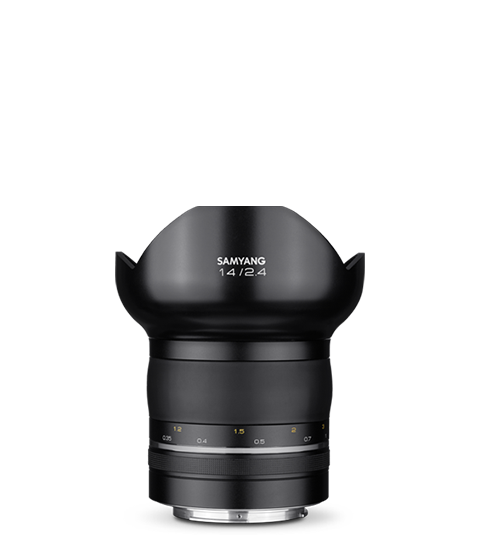

※ This product image is a Canon EF mount lens. Size and design may vary depending on the mount of a lens





Shop Now

  • Unprecedented resolving power for above 50MP and 8K production

    Captures even the slightest movement of the eyes, changes of light and wind thanks to Samyang Optics’ superior optical technology and resolving power.


  • 114.12° Ultra Wide Angle

    Ultra-wide angle allows to capture the creative space beyond what meets the eye and portray an expanded sense of dimension.


  • Minimized Flare and Ghost Effects with Ultra Multi Coating

    By reducing the impact of flares and ghosting effects in your pictures while ensuring excellent image quality and contrast from the center to the periphery, it offers crystal clear, sharp image quality.


  • Aspherical Lens

    With minimal spherical aberration and distortion, you can take pictures with incredible precision.

Technical Information
  • Specifications
    Model name XP 14mm F2.4
    Aperture range F2.4 ~ 22
    Lens optical construction 18 Elements in 14 Groups
    Special lens 2 ASP, 1 Hybrid ASP, 2 ED, 3 HR
    Coating UMC
    Minium focusing distance 0.28m
    Maximum maginification ratio x 0.08
    Filter size -
    Number of blades 9
    Mount Canon EF, Nikon F
    Angle of view 35mm 114.1˚
    APS-C 89.2˚
    Maximum diameter Φ95mm
    Length 109.4mm
    Weight 791g

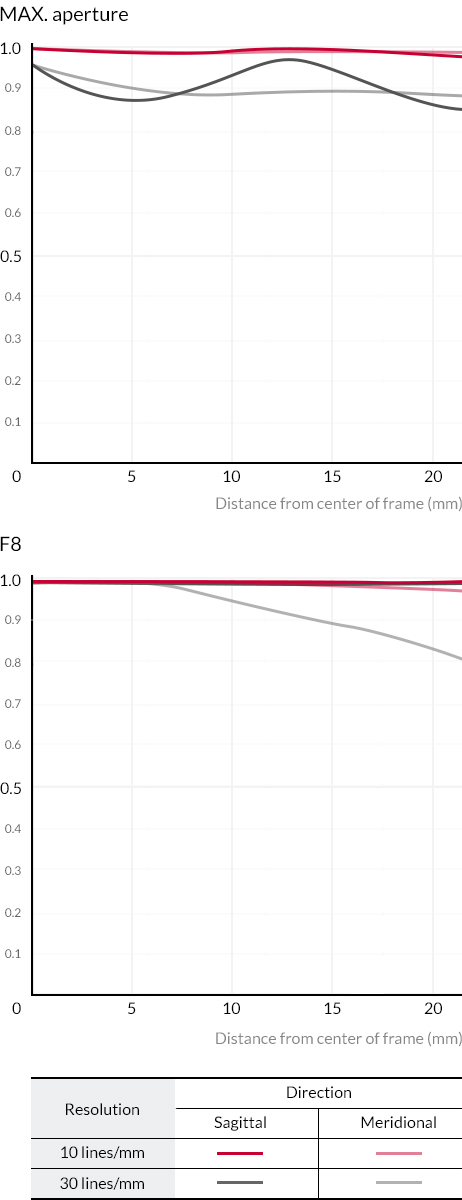

  • MTF Chart

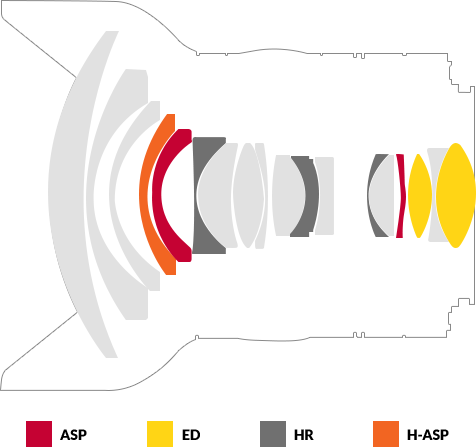

  • Optical construction
