PRODUCT

Superb Resolution & Gorgeous Bokeh

Made For Expression

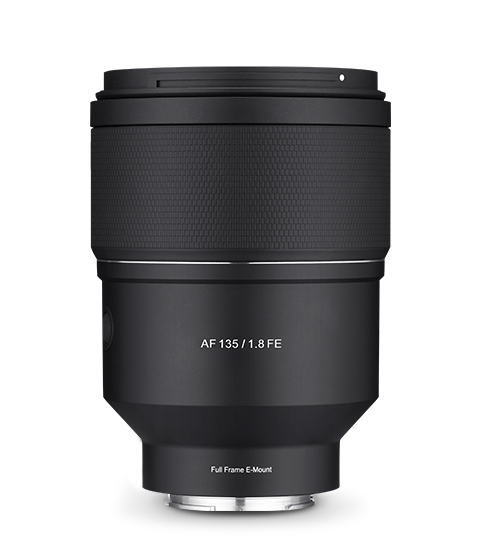

AF 135mm F1.8 FE

Since portability is so important factor
as it is a lens that is often used for portraits with shallow depth of field,
we had to take the optical design, mechanism design, and electronics skills
to the highest level in order to create a high-class telephoto prime lens.

작성자 R&D Engineer / Hanjei Lee
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지

Made For Expression

Samyang Optics is releasing the MF 135mm, a representative telephoto lens that has been loved for its excellent resolution since its launch in 2015, as an AF lens to commemorate the 50th anniversary of its release. Typically, MF 135mm F2 lens has been loved as a lens for portrait photography thanks to its beautiful background expression, but over time, the MF 135mm went beyond portrait photography and became more popular for landscape and astrophotography with superb resolution at a bright maximum aperture. Introducing the Samyang Telephoto AF 135mm F1.8 FE, equipped with outstanding optical performance that has been recognized for over 50 years, AF performance that has been steadily evolving, and convenience features.

1. Superb resolution and light in weight with the newly designed optical system
2. Ultra-precision Aspherical lens offering a soft and beautiful bokeh
3. Focus Range Limiter useful for shooting portraits and close-ups
4. Optimized function for astrophotography - Astro-Focus Mode and LED index







Excellent Expression of F1.8 Telephoto Prime Lens

  • Superb Resolution
    in Lightweight 135mm

    Not only outstanding resolution but also weight is important when shooting portraits. Especially in a handheld shooting environment, the benefit of the lightweight lens is huge, so innovative technology was needed to combine resolution and weight at the same time. The Samyang AF 135mm F1.8 FE is lighter than other 135mm lenses compatible with full-frame Sony FE mount, but it realizes overwhelming resolution in the entire image area and expresses the subject with clear image quality. You can capture the subject's details from the fluttering hairs of models to the twinkling of nebulae light-years away with unprecedented resolution!


  • Amazing Performance from Samyang's Advanced Optical Design

    An optimum resolution is achieved through the optical design of 6 special glasses(3 ED, 2 HR, and 1 U-ASP) among 13 elements in 11 groups. Three extra low-dispersion lenses (ED) produce clear image quality effectively controlling chromatic aberration. Equipped with two high refractive lenses (HR) with excellent refractive index and an ultra-precision aspherical lens (UA), deliver excellent sharpness and contrast in all areas of the image.


  •

  • Extremely Narrow Depth of Field and Breathtaking Bokeh

    • Gorgeous Bokeh

      The AF 135mm F1.8 FE uses a large-diameter aperture to provide smooth background blur. It effectively separates the subject from the background, using a shallow depth of field. Also, it is equipped with UA(Ultra-precision Aspherical) lens, so you can enjoy the natural and refined bokeh. Using this smooth bokeh, you can freely create your images highlighting your subject!


    • Short Minimum Focusing Distance

      Although it is a 135mm telephoto lens that effectively controls aberration at all focusing distances has made it possible to achieve a minimum focus distance of just 0.69 meters (2.26 ft) and a maximum magnification of 0.243x for close-up photography. Small accessories and other subjects can be captured with remarkable resolution and soft, beautiful background bokeh.


    •


    •

    • Lens for Both Photographers and Videographers

      • Advanced Fast and Quiet AF
        for Stills and Movies

        Tracking the subject accurately and quickly, the AF also operates quietly and smoothly when shooting video. Samyang's Linear STM (Stepping Motor) satisfies both photographers and videographers with quieter and more accurate control of the focusing lens groups. The optical design minimizes focus breathing, which is especially advantageous for video recording. There is almost no change in the angle of view when adjusting the focus from close focus to infinity, so you can experience professional cinematic effects during shooting video with the subject moving forward or backward, or focusing from the front or back.

      • Enhanced Usability with Various Features

      • Customized Buttons to Maximize the Operability and Reliability

        The AF 135mm F1.8 FE features 3 different customized buttons such as Focus Hold Button, Custom Switch, and Focus Range Limiter Switch to enhance usability.

        Focus Hold Button
        Pressing this button on the lens will keep the lens locked to that focusing distance. You can assign functions such as Eye AF in settings on the camera body.

        Custom Switch
        There is a custom switch, which can be set to allow adjustment of the aperture silently by rotating the focus ring. Using the optional Lens Station, you can set up the mode to suit your own preference*.
        *More functions will be added through firmware updates in the future.

        Focus Range Limiter Switch
        The Focus Range Limiter only operates in AF mode.
        • It is useful when the distance from an object has been determined.
        • Move the Focus Range Limiter forward or backward to select the focus range.
        - FULL: The AF range is set to infinity at a minimum focus distance of 0.69m.
         (AF search may take slightly longer.)
        - 0.69m - 2m: The AF range is set between 0.69m and 2m, which is suitable for close-up shooting.
        - 1.5m - ∞: The AF range is set from 1.5m to infinity, which is suitable for normal shooting.


      • Modern Design & Weather Sealing

        The AF 135mm F1.8 FE has been developed and enhanced, taking into consideration not only the design features but also the user's shooting environment. It has a micro-patterned rubber focus ring, which feels great to operate and the weather-sealing protects the lens from light rain, snow, and dust. You can easily tell the Astro-Focus Mode status with the LED Index when shooting at night.

Technical Information
  • Specifications
    Model Name AF 135mm F1.8 FE
    Aperture Range F1.8 ~ 22
    Lens Optical Construction 13 Elements in 11 Groups
    Special Lens U-ASP 1, HR 2 , ED 3
    Coating UMC
    Minimum Focusing Distance 0.69m (2.26ft)
    Magnification Ratio x 0.243
    Filter Size (mm) Φ 82.0
    Maximum Diameter (mm) Φ 93.4
    Number of Blades 11
    Mount Sony FE
    Angle of view Full Frame 18.9˚
    APS-C 12.5˚
    Length 129.6mm / 5.1in
    Weight 772g / 27.2oz
    Weather Sealing O
    Custom Mode Switch O
    Focus Hold Button O
    Focus-range Limiter O
    AF Motor Linear STM

  • MTF Chart





  • Optical Construction





We noticed that you are accessing from United-States of America.

If you're looking for another location, please select your location.

Country/ Region
Online shop
GO
Newsletter Feedback Shop
Now

Samyang’s Guide to Achieving the Optimal Angle of View

The perfect spacing and distance are always necessary when shooting all kinds of subjects, including people, to give them a proper relationship with the beautiful space around them. So, what’s the exact distance that helps you best appreciate a work of art, or a photo?

The correct answer is the diagonal length of the full frame of a subject.

표준화각 자료 이미지
표준화각 자료 이미지

The best standpoint from which to appreciate the full view of a subject is the distance of the diagonal length of the subject frame. This wider angle is superior to standing closer at a 50 degree angle to get a more detailed view. This notion of an ideal distance or view point is also applicable in the world of photography.

For still images, keeping a distance equal to the diagonal length of the full image surface is recommended. The full frame sensor of a digital camera is 36 x 24mm and the diagonal length is 43.26mm so any distance close to this number is nearer to the ideal than the currently accepted industry standard of 50mm.

Back when film cameras were common, 45mm was the industry standard and this continued as reflex cameras needed extra space to fit a mirror. However, as mirrorless cameras become more popular again, there has been a need to return to this industry standard…which is the impetus for the Samyang AF 45mm F1.8 FE. With less distortion than a 35mm lens and wider angles than a 55mm lens, the Samyang AF 45mm F1.8 FE is a perfect lens for portraits, landscapes, architecture photography, and pictures of pets.

What is Preset Aperture Control Function?

On the Preset Aperture Control function, the aperture blade operates smoothly like a "De-clicked lens", which is advantageous for video recording.
Fujifilm cameras are engineered to control the aperture according to the minimum exposure value(F-stop), so when the camera controls the aperture, it blinks momentarily to set the proper exposure.

AF 75mm F1.8 X intentionally disconnects the communication with the camera body and the lens itself on the Preset Aperture Control function, so it is possible to smoothly adjust the exposure without flickering. ISO and shutter speed are adjusted according to the changed exposure by controlling the aperture, so the exposure value can be changed even with the 1/2 F-stop.

What is Preset Aperture Control Function?

On the Preset Aperture Control function, the aperture blade operates smoothly like a "De-clicked lens", which is advantageous for video recording.
Fujifilm cameras are engineered to control the aperture according to the minimum exposure value(F-stop), so when the camera controls the aperture, it blinks momentarily to set the proper exposure.

AF 75mm F1.8 X intentionally disconnects the communication with the camera body and the lens itself on the Preset Aperture Control function, so it is possible to smoothly adjust the exposure without flickering. ISO and shutter speed are adjusted according to the changed exposure by controlling the aperture, so the exposure value can be changed even with the 1/2 F-stop.

What is Recommended Settings for Preset Aperture Control Function?

The Preset Aperture Control function operates only when shooting video(Movie mode) and the focusing mode of the camera is set to AF mode. Please set the aperture at f/1.8 before switching the "Custom Switch" to "Mode 2. It is recommended to set the "Exposure mode" as A mode (Aperture Priority AE) or M mode (Manual Exposure).

* How to use the “Preset Aperture Control” function?

1) Camera Body Setting
      AF Mode → Video Mode ('A' or 'M' mode) → Set the Aperture @F1.8
(2) Lens Setting
      Switch your "Custom Switch” to “Mode 2(M2)"
(3) Now, you're ready to use the Preset Aperture Control function with your focus ring

What is Recommended Settings for Preset Aperture Control Function?

The Preset Aperture Control function operates only when shooting video(Movie mode) and the focusing mode of the camera is set to AF mode. Please set the aperture at f/1.8 before switching the "Custom Switch" to "Mode 2. It is recommended to set the "Exposure mode" as A mode (Aperture Priority AE) or M mode (Manual Exposure).

* How to use the “Preset Aperture Control” function?

1) Camera Body Setting
      AF Mode → Video Mode ('A' or 'M' mode) → Set the Aperture @F1.8
(2) Lens Setting
      Switch your "Custom Switch” to “Mode 2(M2)"
(3) Now, you're ready to use the Preset Aperture Control function with your focus ring

[What is Dolly Shot? How to Shoot Easily]

[What is Dolly shot?]

A dolly shot, also referred to as a tracking shot or trucking shot, is a camera movement technique used by cinematographers to track and follow a subject in motion. To achieve this, the camera is mounted on a device called a "dolly," which facilitates smooth tracking movement. The dolly can move in front of, behind, or alongside the subject, which can be a person, a location, a product, or any other object of focus in the frame. Through this, you can control the emotional distance between the subject and the viewer by highlighting the audiovisual and dramatic effects.

[How to take a Dolly Shot simply by handheld]

Tip. If the moving distance is long, the camera may shake, so please shoot at a focal length between 35 and 100mm.
1. Stand at a distance of about 1.5 to 2 meters away from the subject.
2. Set the custom switch to MF and Mode 3 and adjust the focal length to about 100mm.
3. After focusing on the subject, set the aperture to F8~16.
4. Slowly turn the zoom ring to the left (towards the wide-angle end) while using your upper body and arms to move the camera toward your subject.
5. Dolly Shot complete!
※ When shooting from a farther distance from the subject, use a cart or gimbal for more stable shooting.
