PRODUCT

First Samyang Zoom Lens
Equipped with Video Specialty

A Versatile
All-In-One Zoom

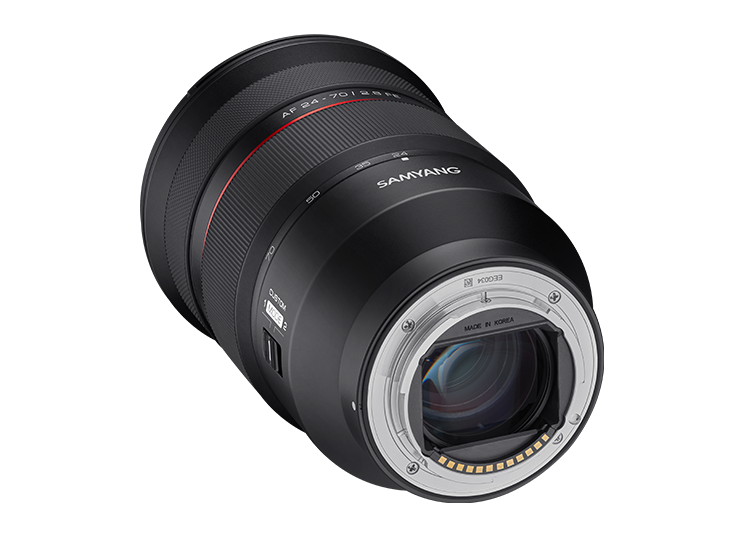

AF 24-70mm F2.8 FE

Samyang AF 24-70mm F2.8 FE is Samyang's first Auto Focus Standard Zoom lens equipped with various functions optimized for video shooting that is different from other standard zoom lenses.
Among the 17 elements, we used 9 special glasses, and premium material is adopted for the barrel.
And it features weather sealing on 7 different spots in order to protect the lens from light rain or dust.
Also, we use the Linear STM motor for a fast and accurate AF to respond to track shooting with eye recognition and face recognition.

작성자 R&D Engineer / Dalkyu Kim
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지

A Versatile All-In-One Zoom



Meet Samyang's first ‘All-In-One’ zoom lens, the AF 24-70mm F2.8 FE,
celebrating the 50th year since its foundation!
The AF 24-70mm F2.8 FE has several features optimized for video shooting to effectively capture the trend change of users who need the flexibility of not only photography but also video shooting.
In addition to a zoom lens that reflects consumer needs for video shooting and video-specialized functions, Samyang exclusive accessories allow users to further enjoy functions available on existing professional Cine lenses with this new Samyang zoom lens.

Why the Samyang AF 24-70mm F2.8 FE is the 'All-In-One' zoom lens?

1. Optimized features not only for outstanding still images but also for video shooting
2. Standard zoom angle of view from wide-angle to short-telephoto
3. A bright maximum aperture of F2.8 throughout the entire zoom range
4. The weather-sealing design and the custom switch, considering the user's shooting environment and convenience







Optimized Features for Video Shooting

  • Zoom Lens Offering Stable Video Recording

    As the AF 24-70mm F2.8 FE provides the 'Par-focal' function in manual focus video shooting mode, allows the user to zoom in on a subject and zoom back out while maintaining the same focus. Now the users are able to shoot cinematic-look videos more conveniently. Well-controlled AF movement speed in AF video shooting mode reduced its wobbling and noise, which maximizes the convenience of the lens usability.
    *Par-Focal function is electronically controlled in MF Video shooting mode.



  • Customized Cine Kit for
    More Professional Video Shooting

    A Samyang Cine Kit, consisting of focus gearing, follow focus, and tripod mount, enables you to shoot professional video. With this Cine Kit, you can easily exchange the shooting system such as the lens or the follow focus, so it saves your time changing systems for shooting.
    This kit is designed, considering the user's shooting environment, so manoeuvrability is very good. For instance, an additional accessory is usually needed to utilize the rod, but a huge accessory like a cage is unnecessary when you have a Samyang Cine Kit. Enjoy the essential elements of video shooting at once with the Samyang Cine Kit!
    * The Samyang Cine Kit is available separately.

  • A Versatile, Bright Standard Zoom Lens


  • Excellent Resolution in
    All Areas of the Image

    This zoom lens delivers a 24-70mm (wide-angle to short-telephoto) angle of view and a bright maximum aperture of F2.8 throughout the entire zoom range, as commonly utilized by full-frame camera users, so it can be used for diverse photos such as landscapes, portraits, and snaps. In particular, the optimum resolution is achieved through the optical design of 17 elements in 14 groups (2 ASP, 1 H-ASP, 3 HR, and 3 ED).
    Take high-quality images with superior resolution in all areas of the image!


  • Impressive Background Blur and Bokeh with Bright F2.8 Aperture

    Bright aperture of the AF 24-70 F2.8 FE offers beautifully blurred background. The subject and background are effectively separated with shallow depth of field, creating impressive images highlighting the subject. The 9-blade circular aperture contributes natural-looking bokeh and the beautiful starburst effect.



  • Short Minimum Focusing Distance

    The minimum focusing distance is just 0.35m (1.15ft), so it is possible to produce a unique perspective close to the subject. It makes it easier to take various images such as food on tables or portraits with exaggerated features.



  • Advanced Fast and Quiet AF
    for Stills and Movies

    Now Autofocus needs to consider not only how more accurately and quickly it captures images, but also how quiet and smooth it is. The AF 24-70mm F2.8 FE features the latest STM(Stepping Motor), a larger and heavier focus lens group can be controlled more quietly and precisely, providing excellent image quality in both photos and videos.

  • Enhanced Usability Considering the Shooting Environment


  • Weather Sealing for Protection from External Influences

    The AF 24-70 F2.8 FE enhanced the usability considering the user's shooting environment. This Samyang's first zoom lens features weather sealing for 7 spots to protect from light dust, rain, and snow and provide the ability to capture stunning images in less than perfect conditions.


  • Custom Switch to
    Set Multiple Functions

    Equipped with the Custom Switch, shooting and operation are more intuitive and simple. You can easily select various functions such as Aperture Control Mode or MF Mode from the Switch, and enjoy the shooting mode that suits your personal preference.
    *More functions will be added through the firmware update in the future.

Technical Information
  • Specifications
    Model Name AF 24-70mm F2.8 FE
    Aperture Range F2.8 ~ 22
    Lens Optical Construction 17 Elements in 14 Groups
    Special Lens ASP 2, H-ASP 1, HR3, ED3
    Coating UMC
    Minimum Focusing Distance 0.35m (1.15ft)
    Magnification Ratio 0.1x - 0.27x
    Diaphragm Blades 9
    Filter Size (mm) Φ 82.0
    Maximum Diameter (mm) Φ 88.0
    Mount Sony FE
    Angle of view Full Frame 34.4˚ - 85.6˚
    APS-C 23.4˚ - 61.7˚
    Length 128.5mm / 5.1in
    Weight 1,027g / 36.2oz
    Weather Sealing O
    AF/MF mode switch O
    AF Motor Linear STM
  • MTF Chart





  • Optical Construction





We noticed that you are accessing from United-States of America.

If you're looking for another location, please select your location.

Country/ Region
Online shop
GO
Newsletter Feedback Shop
Now

Samyang’s Guide to Achieving the Optimal Angle of View

The perfect spacing and distance are always necessary when shooting all kinds of subjects, including people, to give them a proper relationship with the beautiful space around them. So, what’s the exact distance that helps you best appreciate a work of art, or a photo?

The correct answer is the diagonal length of the full frame of a subject.

표준화각 자료 이미지
표준화각 자료 이미지

The best standpoint from which to appreciate the full view of a subject is the distance of the diagonal length of the subject frame. This wider angle is superior to standing closer at a 50 degree angle to get a more detailed view. This notion of an ideal distance or view point is also applicable in the world of photography.

For still images, keeping a distance equal to the diagonal length of the full image surface is recommended. The full frame sensor of a digital camera is 36 x 24mm and the diagonal length is 43.26mm so any distance close to this number is nearer to the ideal than the currently accepted industry standard of 50mm.

Back when film cameras were common, 45mm was the industry standard and this continued as reflex cameras needed extra space to fit a mirror. However, as mirrorless cameras become more popular again, there has been a need to return to this industry standard…which is the impetus for the Samyang AF 45mm F1.8 FE. With less distortion than a 35mm lens and wider angles than a 55mm lens, the Samyang AF 45mm F1.8 FE is a perfect lens for portraits, landscapes, architecture photography, and pictures of pets.

What is Preset Aperture Control Function?

On the Preset Aperture Control function, the aperture blade operates smoothly like a "De-clicked lens", which is advantageous for video recording.
Fujifilm cameras are engineered to control the aperture according to the minimum exposure value(F-stop), so when the camera controls the aperture, it blinks momentarily to set the proper exposure.

AF 75mm F1.8 X intentionally disconnects the communication with the camera body and the lens itself on the Preset Aperture Control function, so it is possible to smoothly adjust the exposure without flickering. ISO and shutter speed are adjusted according to the changed exposure by controlling the aperture, so the exposure value can be changed even with the 1/2 F-stop.

What is Preset Aperture Control Function?

On the Preset Aperture Control function, the aperture blade operates smoothly like a "De-clicked lens", which is advantageous for video recording.
Fujifilm cameras are engineered to control the aperture according to the minimum exposure value(F-stop), so when the camera controls the aperture, it blinks momentarily to set the proper exposure.

AF 75mm F1.8 X intentionally disconnects the communication with the camera body and the lens itself on the Preset Aperture Control function, so it is possible to smoothly adjust the exposure without flickering. ISO and shutter speed are adjusted according to the changed exposure by controlling the aperture, so the exposure value can be changed even with the 1/2 F-stop.

What is Recommended Settings for Preset Aperture Control Function?

The Preset Aperture Control function operates only when shooting video(Movie mode) and the focusing mode of the camera is set to AF mode. Please set the aperture at f/1.8 before switching the "Custom Switch" to "Mode 2. It is recommended to set the "Exposure mode" as A mode (Aperture Priority AE) or M mode (Manual Exposure).

* How to use the “Preset Aperture Control” function?

1) Camera Body Setting
      AF Mode → Video Mode ('A' or 'M' mode) → Set the Aperture @F1.8
(2) Lens Setting
      Switch your "Custom Switch” to “Mode 2(M2)"
(3) Now, you're ready to use the Preset Aperture Control function with your focus ring

What is Recommended Settings for Preset Aperture Control Function?

The Preset Aperture Control function operates only when shooting video(Movie mode) and the focusing mode of the camera is set to AF mode. Please set the aperture at f/1.8 before switching the "Custom Switch" to "Mode 2. It is recommended to set the "Exposure mode" as A mode (Aperture Priority AE) or M mode (Manual Exposure).

* How to use the “Preset Aperture Control” function?

1) Camera Body Setting
      AF Mode → Video Mode ('A' or 'M' mode) → Set the Aperture @F1.8
(2) Lens Setting
      Switch your "Custom Switch” to “Mode 2(M2)"
(3) Now, you're ready to use the Preset Aperture Control function with your focus ring

[What is Dolly Shot? How to Shoot Easily]

[What is Dolly shot?]

A dolly shot, also referred to as a tracking shot or trucking shot, is a camera movement technique used by cinematographers to track and follow a subject in motion. To achieve this, the camera is mounted on a device called a "dolly," which facilitates smooth tracking movement. The dolly can move in front of, behind, or alongside the subject, which can be a person, a location, a product, or any other object of focus in the frame. Through this, you can control the emotional distance between the subject and the viewer by highlighting the audiovisual and dramatic effects.

[How to take a Dolly Shot simply by handheld]

Tip. If the moving distance is long, the camera may shake, so please shoot at a focal length between 35 and 100mm.
1. Stand at a distance of about 1.5 to 2 meters away from the subject.
2. Set the custom switch to MF and Mode 3 and adjust the focal length to about 100mm.
3. After focusing on the subject, set the aperture to F8~16.
4. Slowly turn the zoom ring to the left (towards the wide-angle end) while using your upper body and arms to move the camera toward your subject.
5. Dolly Shot complete!
※ When shooting from a farther distance from the subject, use a cart or gimbal for more stable shooting.
