PRODUCT
Your First
Cine Lens Set
VDSLR
14mm T3.1 MK2
24mm T1.5 MK2
35mm T1.5 MK2
50mm T1.5 MK2
85mm T1.5 MK2
135mm T2.2 MK2
VDSLR 35mm T1.5 MK2
VDSLR系列于2014年首次推出，是开拓入门款电影镜头市场的里程碑式产品。之后，经过6年的研究，VDSLR MK2阵容全新上线，采用全天候密封、双向视角标记、灵动设计、9枚光圈设计。在继承传统VDSLR影像品质的同时，以更新颖的VDSLR MK2阵容培养电影导演的梦想。
(1).png)
Product Planner / Jeremy Shin
Your First Cine Lens Set
VDSLR MK2系列由6个最常用视角14mm T3.1、24mm T1.5、35mm T1.5、50mm T1.5, 85mm T1.5和135mm T2.2组成。它不仅保留了深受全球喜爱的影像品质和明亮的T-stop值，还继承了Cine镜头特有的器械特征。
此外，还积极反映了包括全天候密封等在内的用户需求。
6个镜头均覆盖全帧传感器尺寸，并兼容包括Sony E等在内的7个相机支架。
※ 代表镜头图片是佳能EF卡口镜头，根据卡口不同，镜头的图片也可能会不同。
最常用的6个视角
x 7个兼容的摄像头支架新一代VDSLR MK2系列由14mm、24mm、35mm、50mm, 85mm及135mm共6个视角组成。 由拍摄电影必备的6个画角组成，无论是强调创意的独立影像，还是商业影像，都非常适用。6个镜头均兼容7个相机支架，包括近来受到青睐的全帧无镜索尼E和。
(7个对应支架：索尼E，佳能RF，佳能EF，佳能M，尼康F，富士X，MFT)-
紧凑且专业的电影镜头

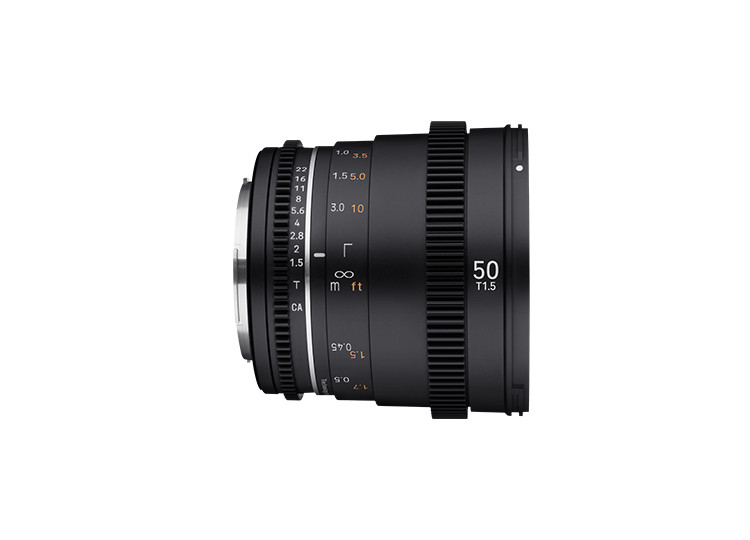

森养VDSLR MK2系列小巧轻便，是手持和常平架拍摄的理想选择。VDSLR 50mm T1.5 MK2，长7.47cm，重量仅为525.8g，但使用无极光圈和对焦齿轮，具备电影镜头的器械特征。超过130°的超长对焦角度，比自动聚焦镜头更精确、更精细。
-
对应全帧传感器的电影质量
不同于紧凑的尺寸，VDSLR MK2镜头覆盖全帧传感器(36x24mm)，对应高清晰度影像制作环境。秉承传统VDSLR系列出色的影像画质，在全球广受青睐。系列6个镜头均采用非球面或则低分散镜片，以减少球面和光学色差，使图像更加清晰生动。值得一提的是，14mm和50mm型号还采用混合非球面镜头，在不牺牲性能的情况下保持紧凑尺寸。
-
明亮的T1.5光圈，用于低照度拍摄环境
高利用率镜头节省拍摄现场的时间和预算！森养VDSLR MK2的6个镜头大部分均采用明亮的T1.5设计，即使在低照度环境下，也能保持高水准影像画质，为场面调度和故事的讲述营造更加专注的环境。此外，由于深度浅薄，背景变得优美模糊，强调拍摄对象主体，为故事增添深度。
新功能1：9枚光圈，实现圆润美丽的散焦与分光
高利用率镜头节省拍摄现场的时间和预算！森养VDSLR MK2的5个镜头均采用明亮的T1.5设计，即使在低照度环境下，也能保持高水准影像画质，为场面调度和故事的讲述营造更加专注的环境。此外，由于深度浅薄，背景变得优美模糊，强调拍摄对象主体，为故事增添深度。
新功能2：搭载全天候密封功能
随着高价设备不断发展、拍摄现场状态多样化，过去6年VDSLR系列收到的最大要求便是全天候功能。因此，VDSLR MK2系列不负众望搭载了全天候密封功能！新的功能可以弥补镜头和相机传感器之间最脆弱的空隙，防止灰尘、雨雪渗透，即使在恶劣的环境中也能专注于影像。
※ 尼康F卡口没有防尘防潮功能。
新功能3：更加摩登的外观设计，添加双向视角标记
森养VDSLR MK2系列采用哑光黑色装饰，设计更加摩登现代，提升了在恶劣拍摄环境中的使用感。轻巧而坚固的设计，能够应对各种影像拍摄环境。不同于传统的VDSLR镜头，采用双向视角标记，因此聚焦操作员和导演助理可以更方便地在现场记录设置值。
Technical Information
-
Product
VDSLR 14mm T3.1 MK2
VDSLR 24mm T1.5 MK2
VDSLR 35mm T1.5 MK2
VDSLR 50mm T1.5 MK2
VDSLR 85mm T1.5 MK2

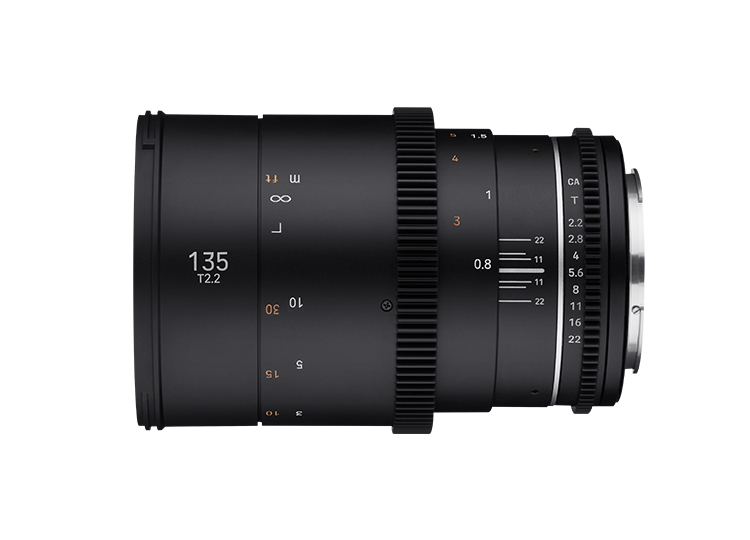

VDSLR 135mm T2.2 MK2
Maximum T-stop
T3.1
T1.5
T1.5
T1.5
T1.5
T2.2
Optical Construction
14 Elements in 10 Groups
13 Elements in 12 Groups
12 Elements in 10 Groups
9 Elements in 6 Groups
9 Elements in 7 Groups
11 Elements in 7 Groups
Negative size
24 x 36 mm
24 x 36 mm
24 x 36 mm
24 x 36 mm
24 x 36 mm
24 x 36 mm
Angle of View
Full Frame(1:1x)
115.7°
84.1°
63.1°
46.2°
28.4°
18.8°
Super 35
98.4°
65.3°
47.1°
33.7°
20.6°
13.6°
APS-C (1:1.5x)
92.5°
61.3°
43.9°
31.3°
19.1°
12.6°
APS-C (1:1.6x)
89.1°
58.0°
41.3°
29.4°
17.9°
11.7°
MFT (1:2x)
72.7°
47.6°
33.4°
23.6°
14.4°
9.0°
Minimum Focusing Distance (∞ ~)
0.28 m
0.92 ft
0.25 m
0.82 ft
0.3 m
0.98 ft
0.45m
1.47 ft
1.1 m
3.6 ft
0.8 m
2.62 ft
Filter Size (mm)
(Not detachable)
77
77
77
72
77
Diaphragm Blades
9
9
9
9
9
9
Angle
Focus Angle
139°
139°
146°
150°
140°
195°
Aperture Angle
Nikon F
45°
48°
48°
48°
48°
52.5°
Others
36°
49°
Weather Sealing
Nikon F
X
X
X
X
X
X
Others
O
O
O
O
O
O
Size
Canon EF
87.0 x 96.1 mm
3.42 x 3.78 in
84.0 x 97.1 mm
3.31 x 3.82 in
84.0 x 111.5 mm
3.31 x 4.39 in
84.0 x 74.7 mm
3.31 x 2.94 in
84.0 x 74.7 mm
3.31 x 2.94 in
84.0 x 122.1 mm
3.31 x 4.81 in
Sony E
87.0 x 122.1 mm
3.42 x 4.80 in
84.0 x 123.1 mm
3.31 x 4.85 in
84.0 x 137.5 mm
3.31 x 5.41 in
84.0 x 100.7 mm
3.31 x 3.96 in
84.0 x 100.7 mm
3.31 x 3.96 in
84.0 x 148.1 mm
3.31 x 5.83 in
Canon RF
87.0 x 121.1 mm
3.42 x 4.76 in
84.0 x 121.1 mm
3.31 x 4.77 in
84.0 x 135.5 mm
3.31 x 5.33 in
84.0 x 98.7 mm
3.31 x 3.89 in
84.0 x 98.7 mm
3.31 x 3.89 in
84.0 x 146.1 mm
3.31 x 5.75 in
Nikon F
87.0 x 93.6 mm
3.42 x 3.68 in
84.0 x 94.6 mm
3.31 x 3.72 in
84.0 x 109.0 mm
3.31 x 4.29 in
84.0 x 72.2 mm
3.31 x 3.63 in
84.0 x 72.2 mm
3.31 x 3.63 in
84.0 x 119.6 mm
3.31 x 4.71 in
Canon M
87.0 x 123.0 mm
3.42 x 4.84 in
84.0 x 123.0 mm
3.31 x 4.84 in
84.0 x 137.4 mm
3.31 x 5.41 in
84.0 x 100.6 mm
3.31 x 3.96 in
84.0 x 100.6 mm
3.31 x 3.96 in
84.0 x 148.0 mm
3.31 x 5.83 in
Fuji X
87.0 x 123.4 mm
3.42 x 4.85 in
84.0 x 123.4 mm
3.31 x 4.86 in
84.0 x 137.8 mm
3.31 x 5.43 in
84.0 x 101.0 mm
3.31 x 3.98 in
84.0 x 101.0 mm
3.31 x 3.98 in
84.0 x 148.4 mm
3.31 x 5.84 in
MFT
87.0 x 120.9 mm
3.42 x 4.75 in
84.0 x 121.9 mm
3.31 x 4.80 in
84.0 x 136.3 mm
3.31 x 5.38 in
84.0 x 99.5 mm
3.31 x 3.92 in
84.0 x 99.5 mm
3.31 x 3.92 in
84.0 x 146.9 mm
3.31 x 5.78 in
Weight
Canon EF
650.2 g
1.43 lb
597.8 g
1.32 lb
738.0 g
1.63 lb
525.8 g
1.16 lb
561.6 g
1.24 lb
866.4 g
1.91 lb
Sony E
711.2 g
1.56 lb
649.0 g
1.43 lb
789.2 g
1.74 lb
576.4 g
1.27 lb
612.4 g
1.35 lb
918.2 g
2.02 lb
Canon RF
746.4 g
1.64 lb
662.6 g
1.46 lb
802.8 g
1.77 lb
590.6 g
1.30 lb
626.4 g
1.38 lb
960.2g
2.12 lb
Nikon F
639.6 g
1.41 lb
587.0 g
1.29 lb
723.8 g
1.60 lb
514.8 g
1.13 lb
549.2 g
1.21 lb
850.4 g
1.87 lb
Canon M
696.4 g
1.53 lb
642.0 g
1.42 lb
778.6 g
1.72 lb
569.4 g
1.26 lb
606.0 g
1.34 lb
913.2 g
2.01 lb
Fuji X
697.4 g
1.53 lb
640.0 g
1.41 lb
776.0 g
1.71 lb
567.4 g
1.25 lb
603.0 g
1.33 lb
912.0 g
2.01 lb
MFT
692.8 g
1.52 lb
636.0 g
1.40 lb
772.6 g
1.70 lb
563.8 g
1.24 lb
600.0 g
1.32 lb
908.4 g
2.00 lb
-
Gear Ring
Position
Module
A
B
C
D
Focus
Diameter
Aperture Diameter
Canon EF
Sony E
Canon RF
Nikon F
Canon M
Fuji X
MFT
Canon EF
Others
Length
0.8 mm
10 mm
4 mm
46.8 mm
10.5 mm
36.5 mm
34.5 mm
8 mm
36.2 mm
36.8 mm
35.3 mm
73.6 mm
70.4 mm
73.6 mm
-
VDSLR 14mm T3.1 MK2
MTF CHART
-
VDSLR 24mm T1.5 MK2
MTF CHART
-
VDSLR 35mm T1.5 MK2
MTF CHART
-
VDSLR 50mm T1.5 MK2
MTF CHART
-
VDSLR 85mm T1.5 MK2
MTF CHART
-
VDSLR 135mm T2.2 MK2
MTF CHART
-
VDSLR 14mm T3.1 MK2
Optical Construction
-
VDSLR 24mm T1.5 MK2
Optical Construction
-
VDSLR 35mm T1.5 MK2
Optical Construction
-
VDSLR 50mm T1.5 MK2
Optical Construction
-
VDSLR 85mm T1.5 MK2
Optical Construction
-
VDSLR 135mm T2.2 MK2
Optical Construction
| Product | VDSLR 14mm T3.1 MK2 | VDSLR 24mm T1.5 MK2 | VDSLR 35mm T1.5 MK2 | VDSLR 50mm T1.5 MK2 | VDSLR 85mm T1.5 MK2 | VDSLR 135mm T2.2 MK2 | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Maximum T-stop | T3.1 | T1.5 | T1.5 | T1.5 | T1.5 | T2.2 | ||||||||
| Optical Construction | 14 Elements in 10 Groups | 13 Elements in 12 Groups | 12 Elements in 10 Groups | 9 Elements in 6 Groups | 9 Elements in 7 Groups | 11 Elements in 7 Groups | ||||||||
| Negative size | 24 x 36 mm | 24 x 36 mm | 24 x 36 mm | 24 x 36 mm | 24 x 36 mm | 24 x 36 mm | ||||||||
| Angle of View | Full Frame(1:1x) | 115.7° | 84.1° | 63.1° | 46.2° | 28.4° | 18.8° | |||||||
| Super 35 | 98.4° | 65.3° | 47.1° | 33.7° | 20.6° | 13.6° | ||||||||
| APS-C (1:1.5x) | 92.5° | 61.3° | 43.9° | 31.3° | 19.1° | 12.6° | ||||||||
| APS-C (1:1.6x) | 89.1° | 58.0° | 41.3° | 29.4° | 17.9° | 11.7° | ||||||||
| MFT (1:2x) | 72.7° | 47.6° | 33.4° | 23.6° | 14.4° | 9.0° | ||||||||
| Minimum Focusing Distance (∞ ~) | 0.28 m | 0.92 ft | 0.25 m | 0.82 ft | 0.3 m | 0.98 ft | 0.45m | 1.47 ft | 1.1 m | 3.6 ft | 0.8 m | 2.62 ft | ||
| Filter Size (mm) | (Not detachable) | 77 | 77 | 77 | 72 | 77 | ||||||||
| Diaphragm Blades | 9 | 9 | 9 | 9 | 9 | 9 | ||||||||
| Angle | Focus Angle | 139° | 139° | 146° | 150° | 140° | 195° | |||||||
| Aperture Angle | Nikon F | 45° | 48° | 48° | 48° | 48° | 52.5° | |||||||
| Others | 36° | 49° | ||||||||||||
| Weather Sealing | Nikon F | X | X | X | X | X | X | |||||||
| Others | O | O | O | O | O | O | ||||||||
| Size | Canon EF | 87.0 x 96.1 mm | 3.42 x 3.78 in | 84.0 x 97.1 mm | 3.31 x 3.82 in | 84.0 x 111.5 mm | 3.31 x 4.39 in | 84.0 x 74.7 mm | 3.31 x 2.94 in | 84.0 x 74.7 mm | 3.31 x 2.94 in | 84.0 x 122.1 mm | 3.31 x 4.81 in | |
| Sony E | 87.0 x 122.1 mm | 3.42 x 4.80 in | 84.0 x 123.1 mm | 3.31 x 4.85 in | 84.0 x 137.5 mm | 3.31 x 5.41 in | 84.0 x 100.7 mm | 3.31 x 3.96 in | 84.0 x 100.7 mm | 3.31 x 3.96 in | 84.0 x 148.1 mm | 3.31 x 5.83 in | ||
| Canon RF | 87.0 x 121.1 mm | 3.42 x 4.76 in | 84.0 x 121.1 mm | 3.31 x 4.77 in | 84.0 x 135.5 mm | 3.31 x 5.33 in | 84.0 x 98.7 mm | 3.31 x 3.89 in | 84.0 x 98.7 mm | 3.31 x 3.89 in | 84.0 x 146.1 mm | 3.31 x 5.75 in | ||
| Nikon F | 87.0 x 93.6 mm | 3.42 x 3.68 in | 84.0 x 94.6 mm | 3.31 x 3.72 in | 84.0 x 109.0 mm | 3.31 x 4.29 in | 84.0 x 72.2 mm | 3.31 x 3.63 in | 84.0 x 72.2 mm | 3.31 x 3.63 in | 84.0 x 119.6 mm | 3.31 x 4.71 in | ||
| Canon M | 87.0 x 123.0 mm | 3.42 x 4.84 in | 84.0 x 123.0 mm | 3.31 x 4.84 in | 84.0 x 137.4 mm | 3.31 x 5.41 in | 84.0 x 100.6 mm | 3.31 x 3.96 in | 84.0 x 100.6 mm | 3.31 x 3.96 in | 84.0 x 148.0 mm | 3.31 x 5.83 in | ||
| Fuji X | 87.0 x 123.4 mm | 3.42 x 4.85 in | 84.0 x 123.4 mm | 3.31 x 4.86 in | 84.0 x 137.8 mm | 3.31 x 5.43 in | 84.0 x 101.0 mm | 3.31 x 3.98 in | 84.0 x 101.0 mm | 3.31 x 3.98 in | 84.0 x 148.4 mm | 3.31 x 5.84 in | ||
| MFT | 87.0 x 120.9 mm | 3.42 x 4.75 in | 84.0 x 121.9 mm | 3.31 x 4.80 in | 84.0 x 136.3 mm | 3.31 x 5.38 in | 84.0 x 99.5 mm | 3.31 x 3.92 in | 84.0 x 99.5 mm | 3.31 x 3.92 in | 84.0 x 146.9 mm | 3.31 x 5.78 in | ||
| Weight | Canon EF | 650.2 g | 1.43 lb | 597.8 g | 1.32 lb | 738.0 g | 1.63 lb | 525.8 g | 1.16 lb | 561.6 g | 1.24 lb | 866.4 g | 1.91 lb | |
| Sony E | 711.2 g | 1.56 lb | 649.0 g | 1.43 lb | 789.2 g | 1.74 lb | 576.4 g | 1.27 lb | 612.4 g | 1.35 lb | 918.2 g | 2.02 lb | ||
| Canon RF | 746.4 g | 1.64 lb | 662.6 g | 1.46 lb | 802.8 g | 1.77 lb | 590.6 g | 1.30 lb | 626.4 g | 1.38 lb | 960.2g | 2.12 lb | ||
| Nikon F | 639.6 g | 1.41 lb | 587.0 g | 1.29 lb | 723.8 g | 1.60 lb | 514.8 g | 1.13 lb | 549.2 g | 1.21 lb | 850.4 g | 1.87 lb | ||
| Canon M | 696.4 g | 1.53 lb | 642.0 g | 1.42 lb | 778.6 g | 1.72 lb | 569.4 g | 1.26 lb | 606.0 g | 1.34 lb | 913.2 g | 2.01 lb | ||
| Fuji X | 697.4 g | 1.53 lb | 640.0 g | 1.41 lb | 776.0 g | 1.71 lb | 567.4 g | 1.25 lb | 603.0 g | 1.33 lb | 912.0 g | 2.01 lb | ||
| MFT | 692.8 g | 1.52 lb | 636.0 g | 1.40 lb | 772.6 g | 1.70 lb | 563.8 g | 1.24 lb | 600.0 g | 1.32 lb | 908.4 g | 2.00 lb | ||
|
Gear Ring Position |
Module | A | B | C | D |
Focus Diameter |
Aperture Diameter | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Canon EF | Sony E | Canon RF | Nikon F | Canon M | Fuji X | MFT | Canon EF | Others | ||||||
| Length | 0.8 mm | 10 mm | 4 mm | 46.8 mm | 10.5 mm | 36.5 mm | 34.5 mm | 8 mm | 36.2 mm | 36.8 mm | 35.3 mm | 73.6 mm | 70.4 mm | 73.6 mm |
MTF CHART
MTF CHART
MTF CHART
MTF CHART
MTF CHART
MTF CHART
Optical Construction
Optical Construction
Optical Construction
Optical Construction
Optical Construction
Optical Construction
